This is a stock replacement clutch cable that fits 1968-1986 Harley-Davidson Big Twins. Need a new clutch cable for that generator o...
Read more

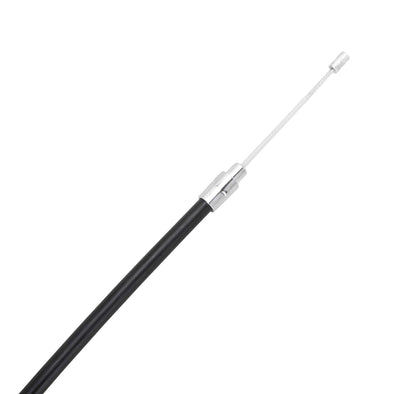

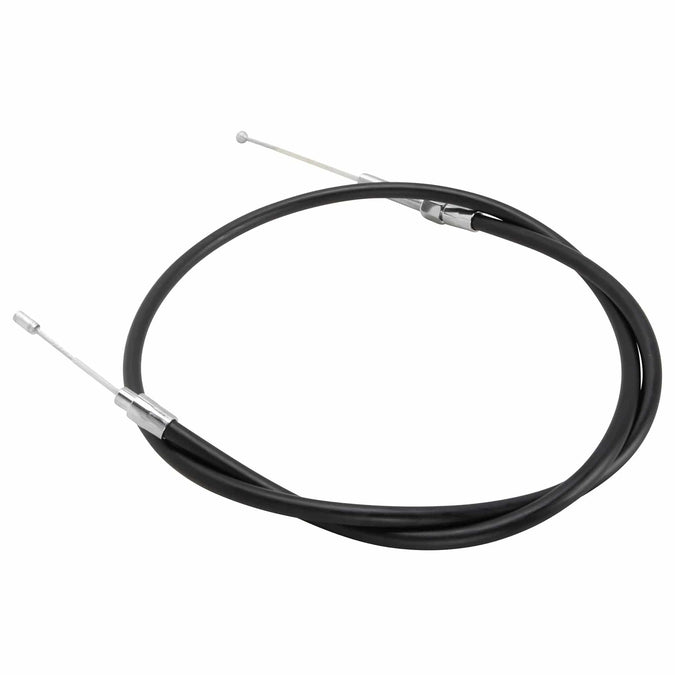

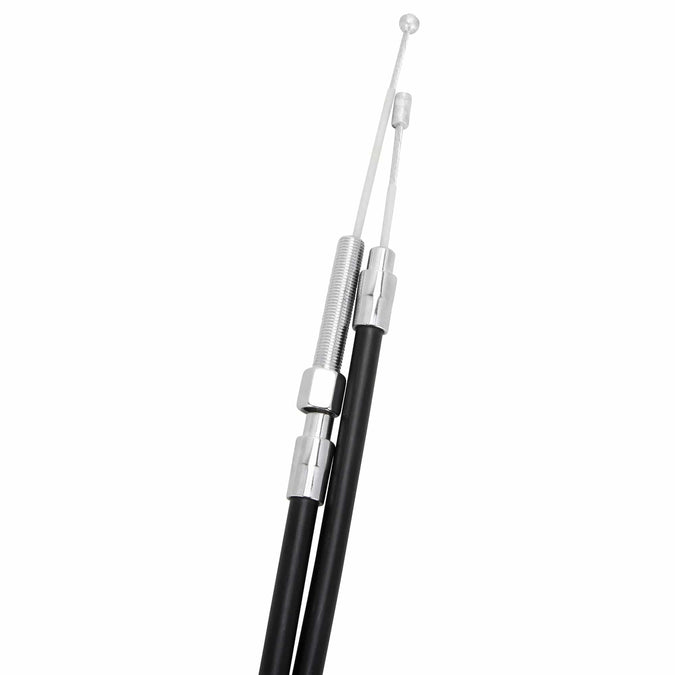

This is a stock replacement clutch cable that fits 1968-1986 Harley-Davidson Big Twins. Need a new clutch cable for that generator or cone Shovelhead? This is it! This cable is a replacement for Harley-Davidson OEM # 38618-68c (stock length is 52-9/16"), available in a variety of lengths for choppers and bikes with custom handlebars.
Features:
-Cables feature chrome fittings, black vinyl outer casings, tempered-steel inner wire and a nylon inner sleeve for smooth operation
-High-performance cables use the latest technology of longitudinally winding the outer housing lengthwise rather than spirally so cable bends in a more natural arc and eliminates spring and compression
-Late-style cables are measured with the adjuster completely collapsed
| CLUTCH CABLE MEASUREMENTS |
| Housing Length |
48" |
| Overall Length |
56-1/2" |
| Free Play |
5-1/2" |
| Adjuster Location |
Bottom |
 |
|
CLUTCH CABLE MEASUREMENT DEFINITIONS
See the example diagrams above to see how this cable is measured. Note that the diagrams are just examples, and are not drawings of this exact cable! Also, there can be variations of these measurements by +/- .25" (6mm) due to manufacturing tolerances.
Housing Length: Overall length of cable housing, not including adjuster or elbow
Overall Length: Overall length, end-of-ferrule to end-of-ferrule (the full length including everything)
Free Play: Pull inner cable fully to one side, measure length, not including cable end (ferrule)
Adjuster Location: Adjuster location measured from bottom of cable to where vinyl meets adjuster. N/A will be listed if no adjuster is present on the cable.
|
Read less
