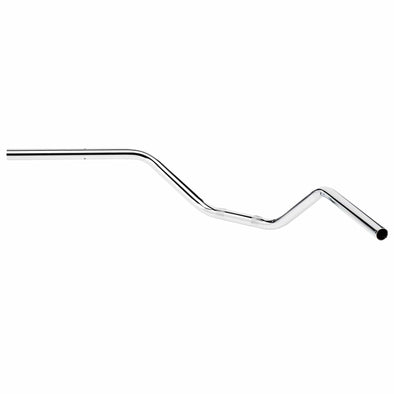

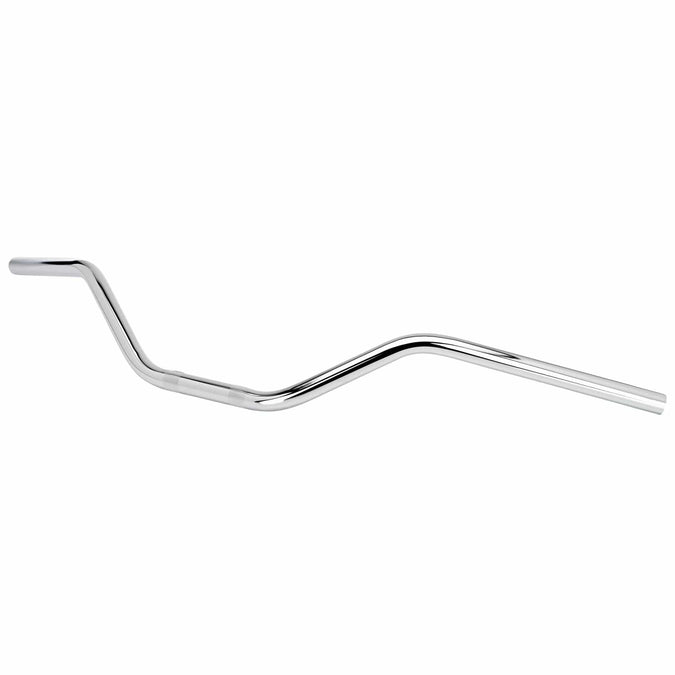

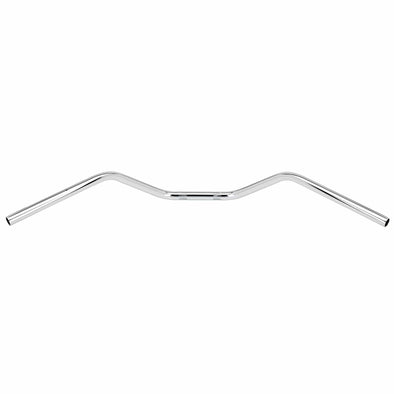

7/8 inch diameter handlebars, Chrome These reproduction 7/8 inch Triumph Handlebars are made by Emgo and feature a Western style bend. They will work on any motorcycle which uses a 7/8 inch handlebar, such as Triumph, BSA, Norton, Yamaha, Honda and others. Perfect for a cafe racer or custom and priced affordable to boot! These handlebars are chrome plated steel.
Note: These bars have 2 small holes on the left side just past the grip area that will accommodate the screws for the factory horn/ hi-low switch that would be found on a stock bike .
HANDLEBAR MEASUREMENTS |
Rise |
5" |
Width |
32.5" |
Center Width |
5" |
Pullback/Sweep |
6" |
Handlebar Diameter |
7/8" |
Controls Diameter |
7/8" |
Clamping Diameter |
7/8" |
 |
HANDLEBAR MEASUREMENT NOTES
See the example diagram above to see how these handlebars are measured. Note that the diagrams are just examples, and are not drawings of this exact set of handlebars!
For more information on handlebar measurements, and how to find the right set of bars for your bike, check out our Motorcycle Handlebars 101 article!
|
