Don't skimp on brakes! When it comes to brakes, ensure high quality from a brand you trust. The ability to stop fast is paramount to keeping you and your motorcycle in tip-top shape.

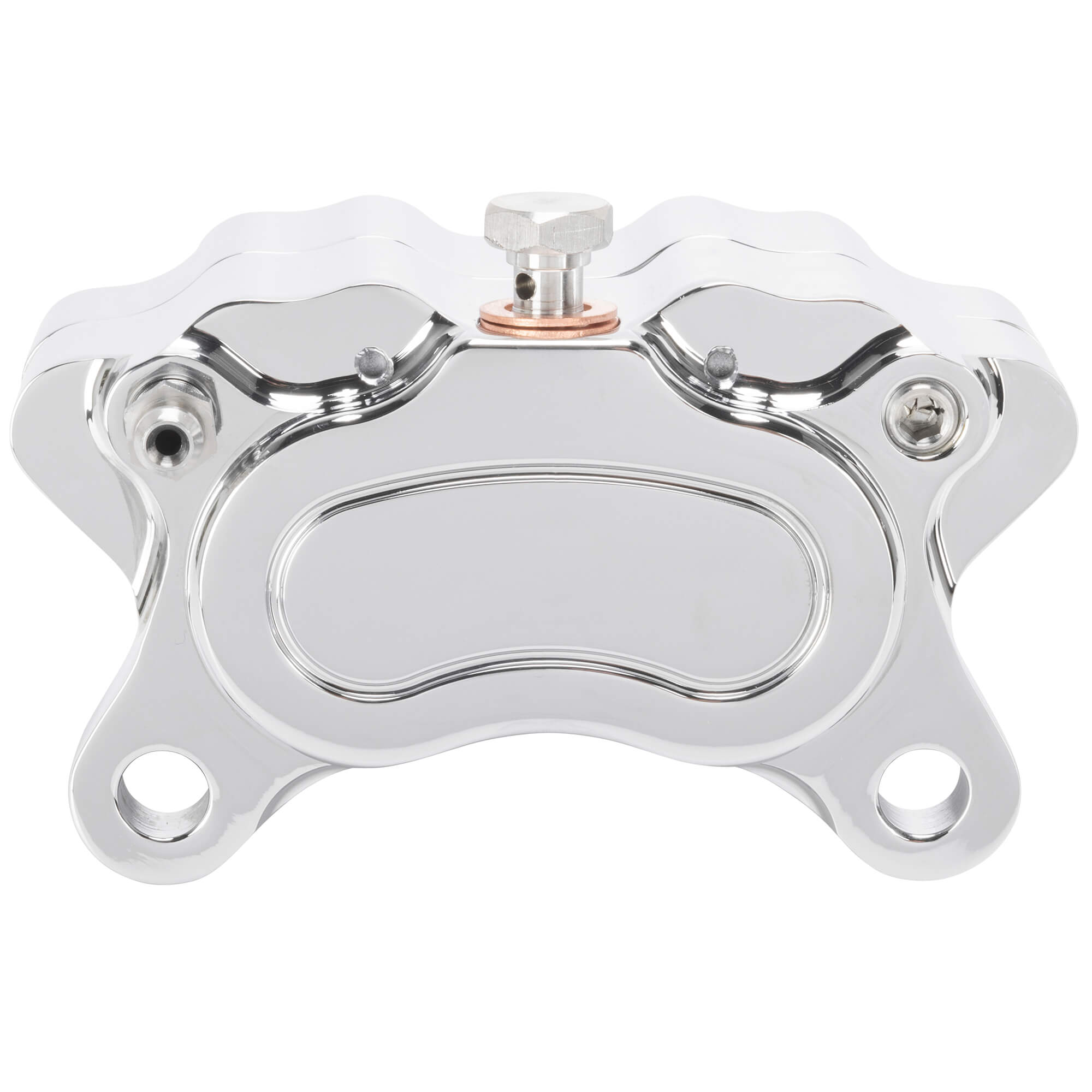

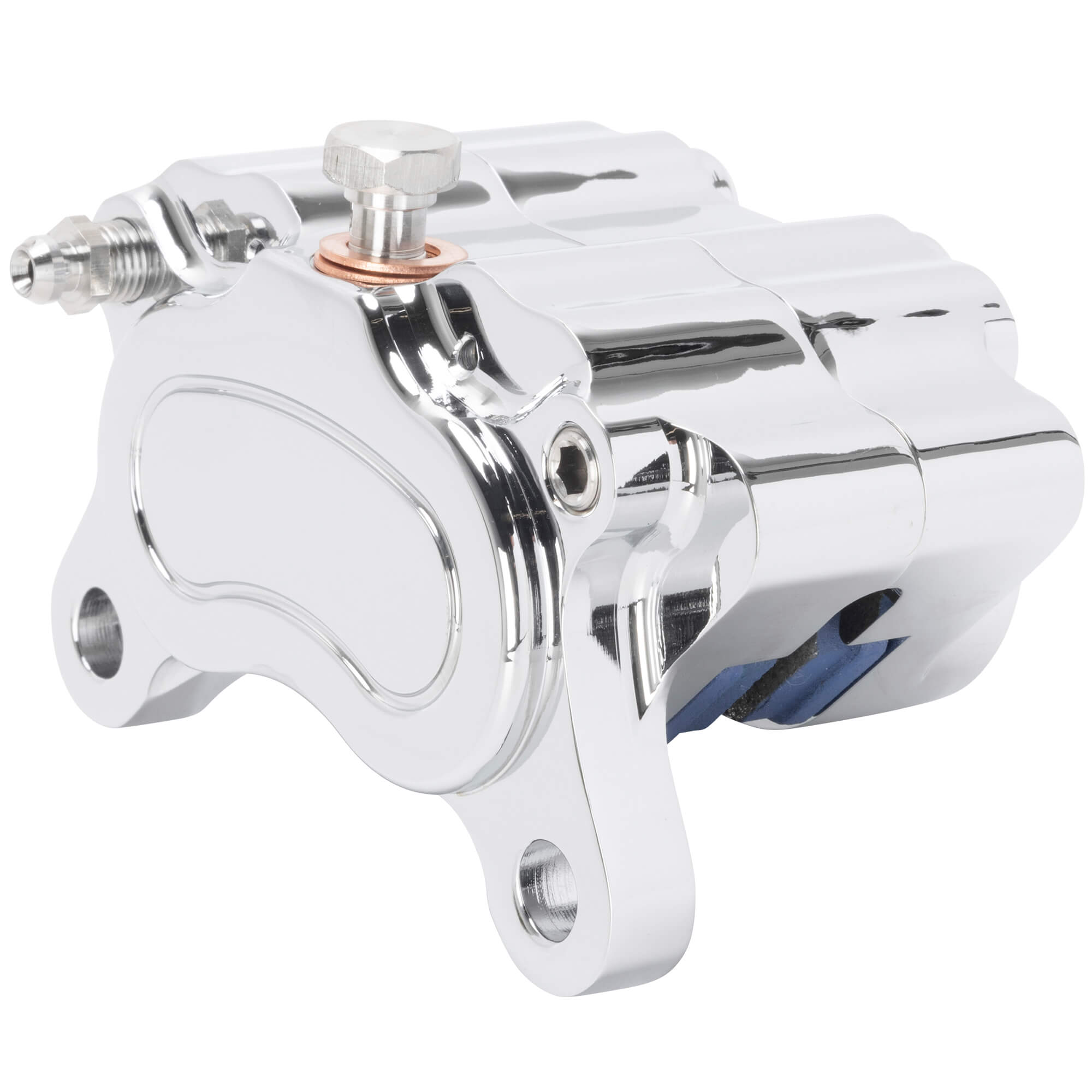

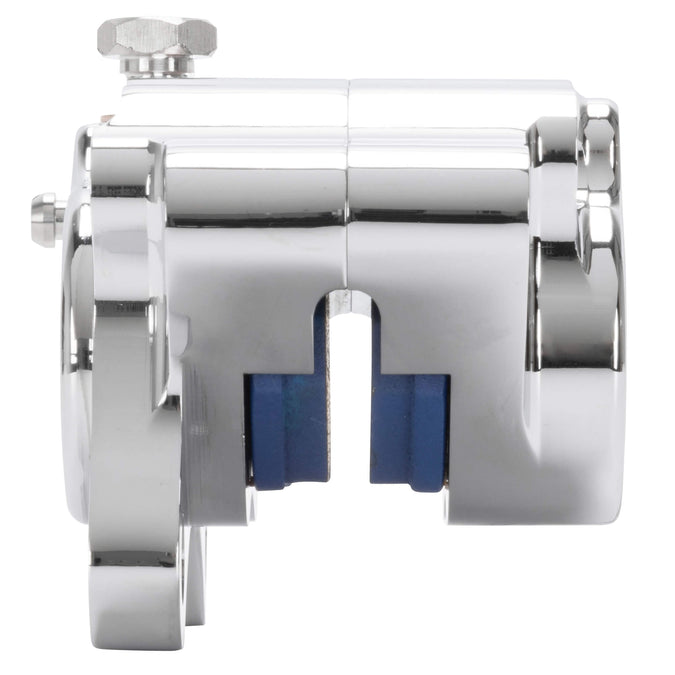

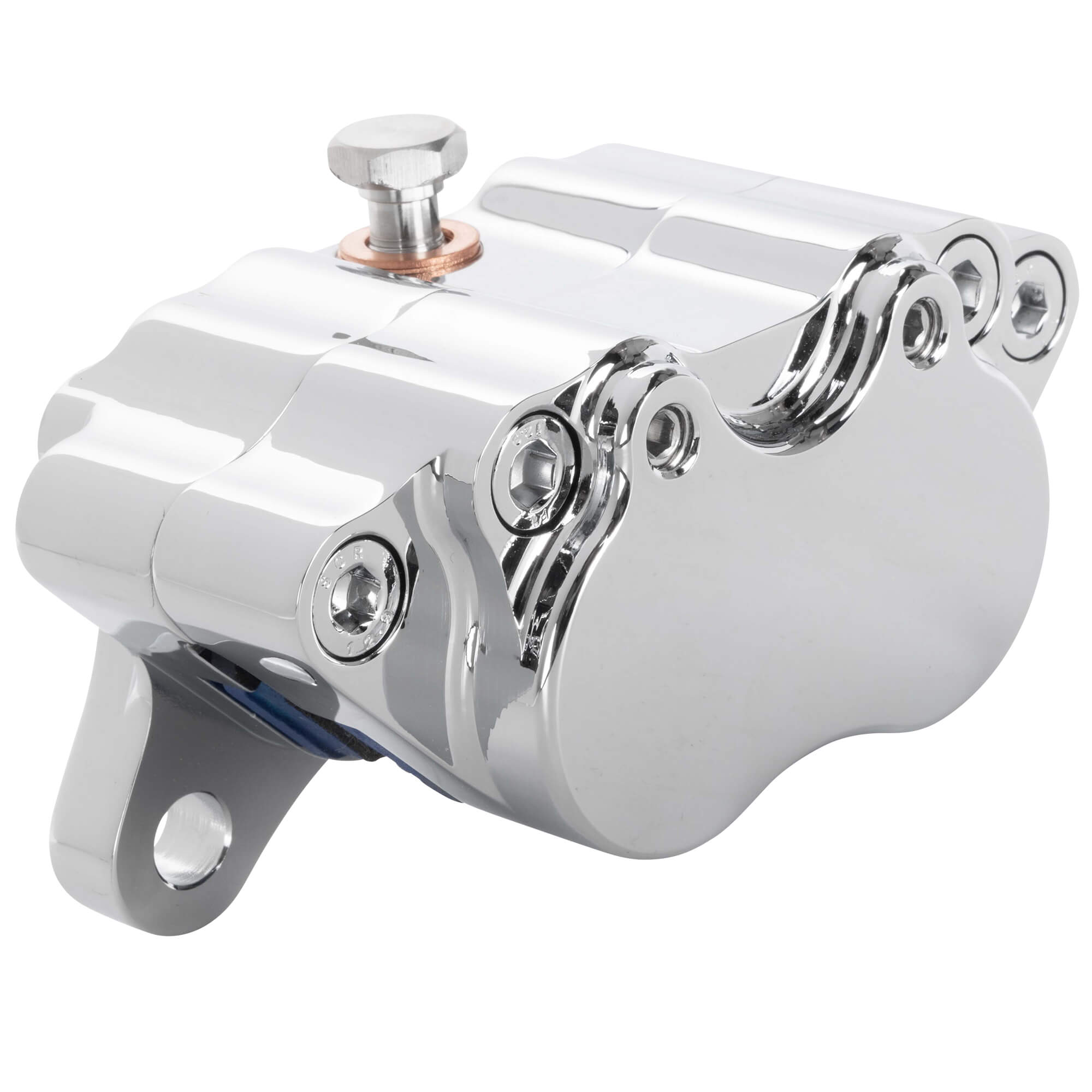

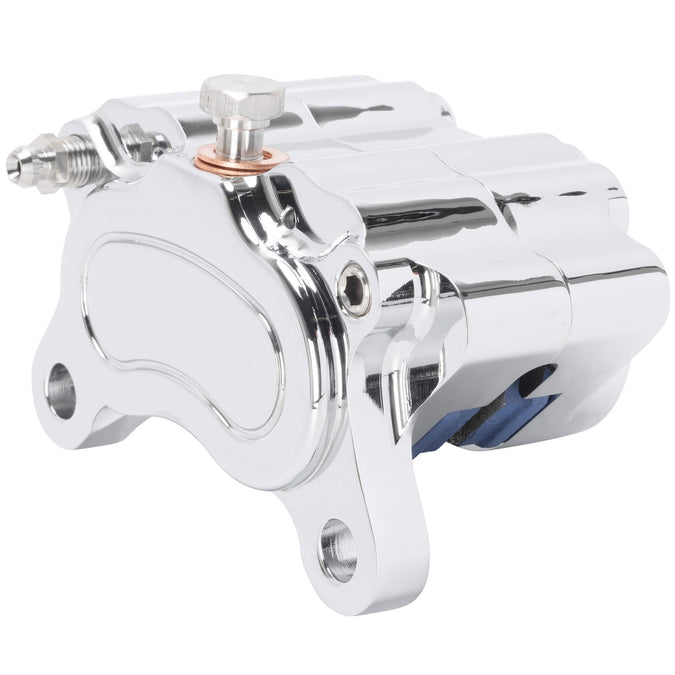

- Chrome Plated 4-Piston Caliper
- CNC Machined 6061-T6 Billet Aluminum
- For Front Or Rear Applications
- Uses DOT 5 Brake Fluid
- Standard 3-1/2" Center-To-Center Mounting Holes
- Banjo Bolt (3/8" x 24 thread) and Copper Crush Washers Included

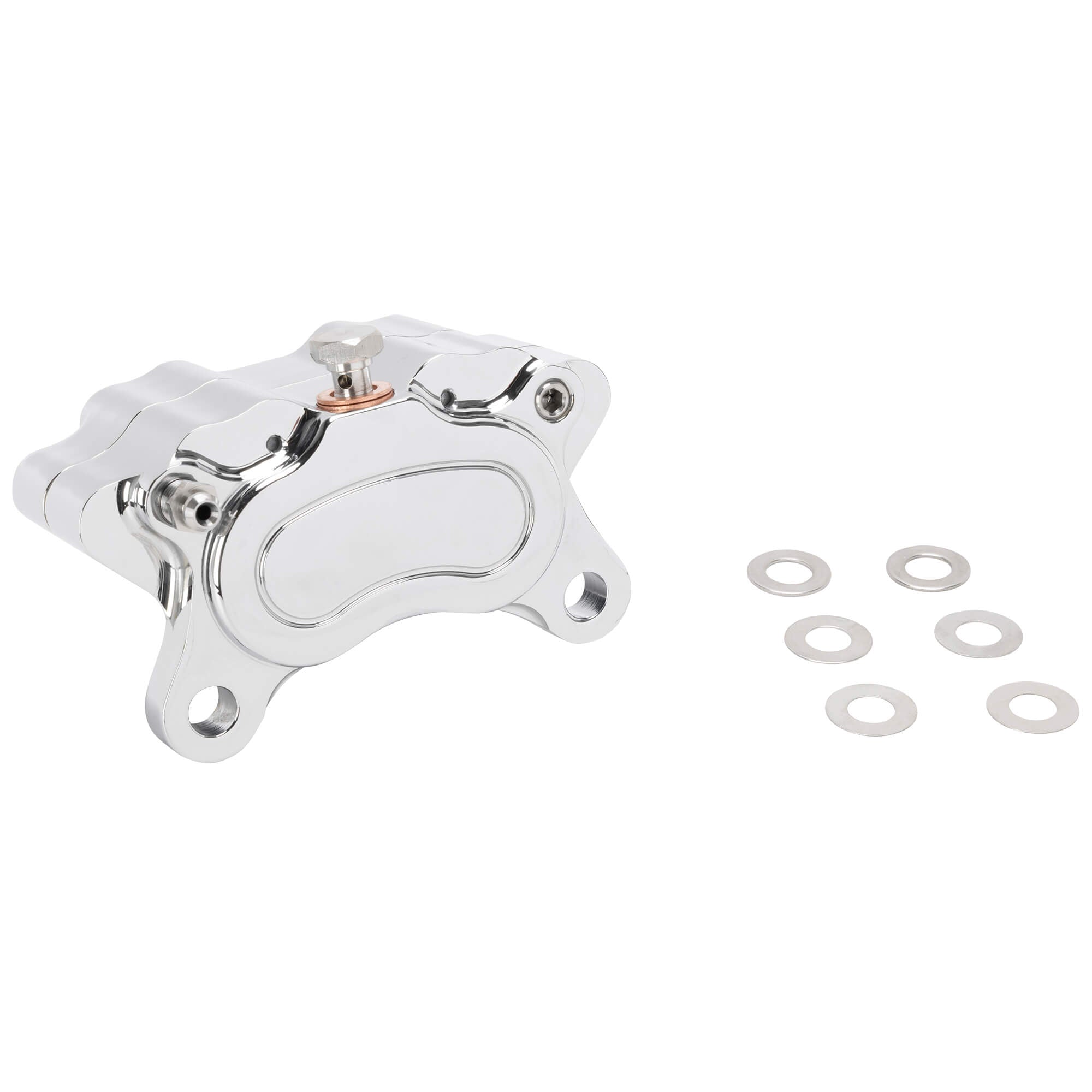

- Set Of 6 Stainless Steel Caliper Spacing Shims Included

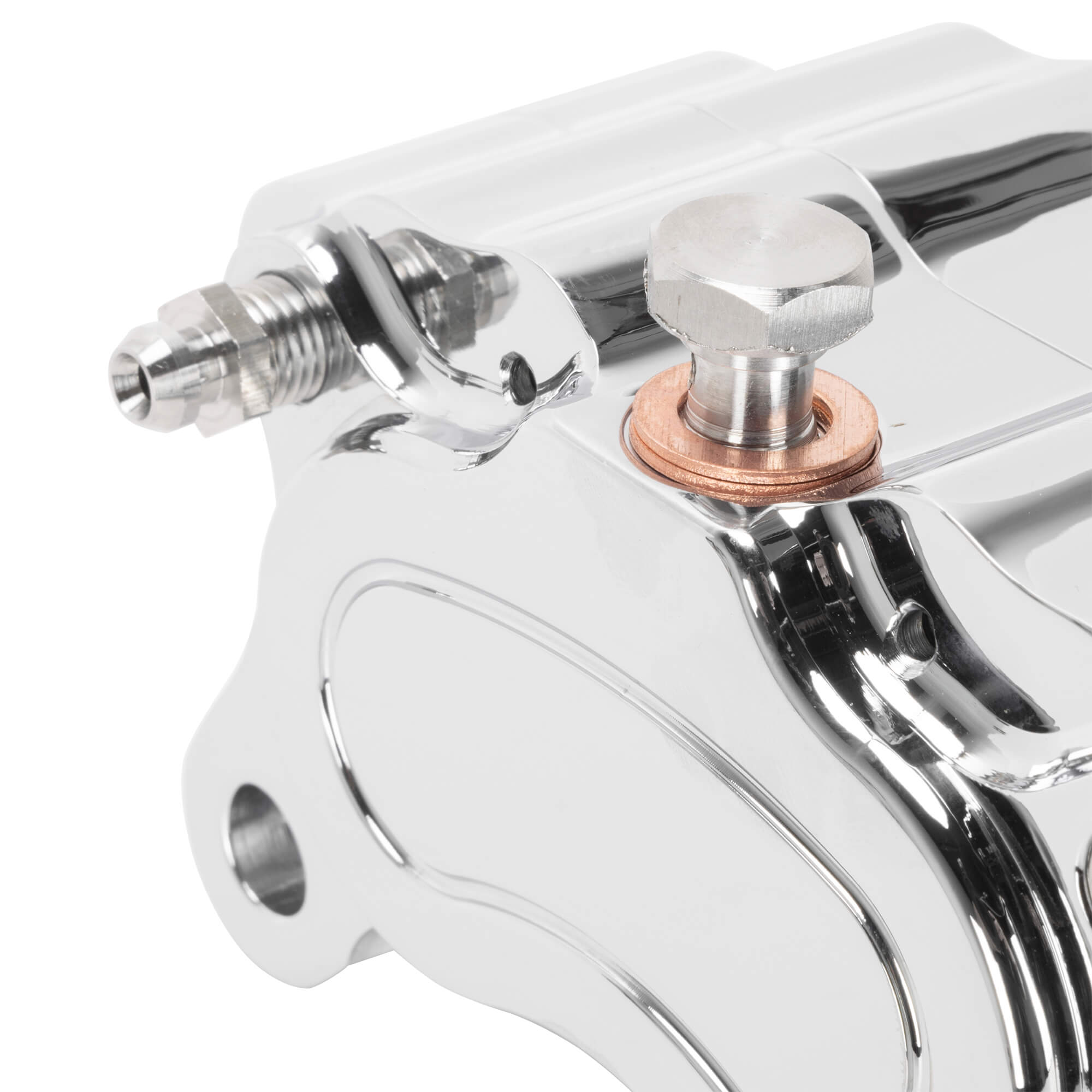

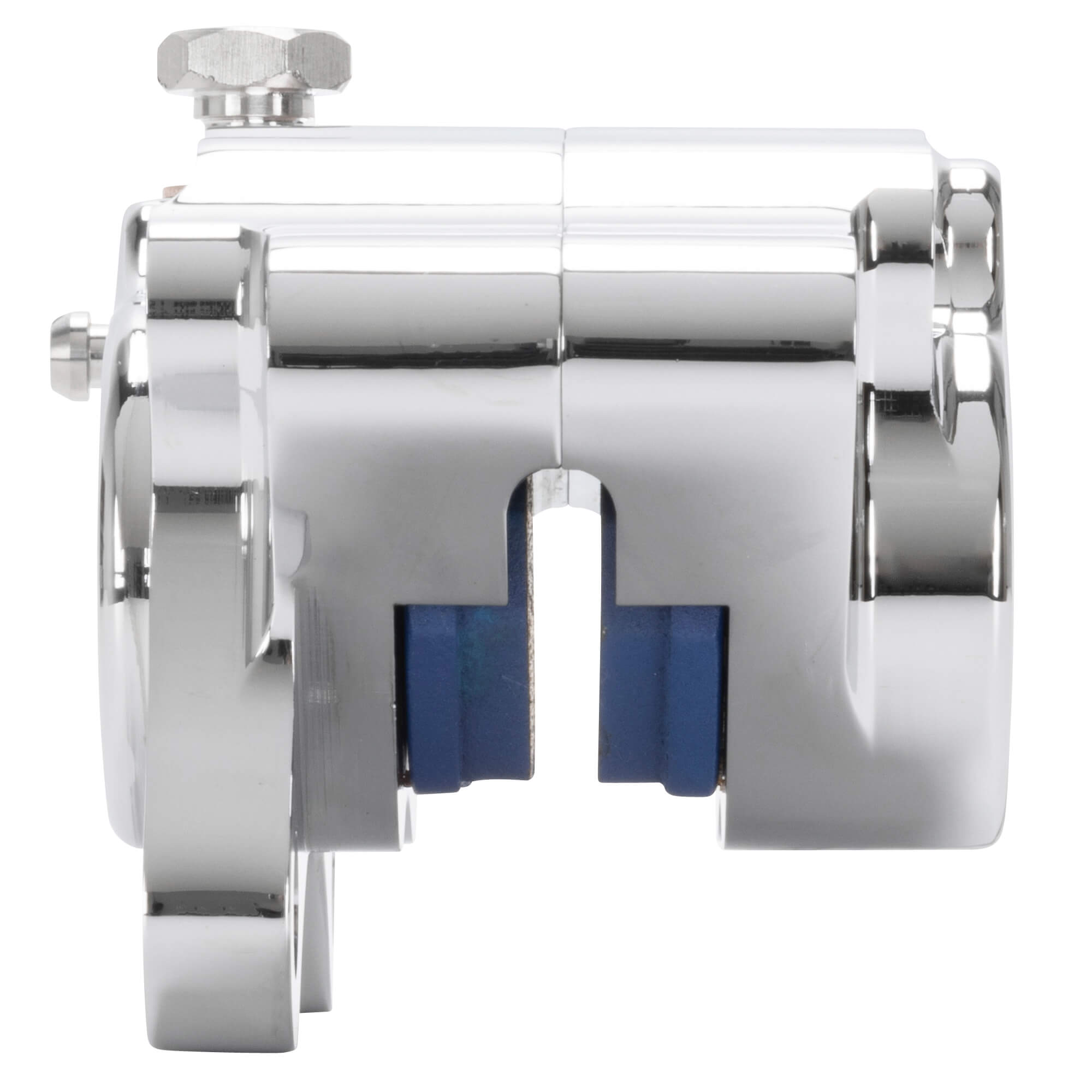

This four piston caliper is supplied with installed brake pads, a banjo bolt with two copper crush washers, and a set of six stainless steel caliper spacing shims (2 each of shim thicknesses .012", .020" and .040"). A unique feature of our caliper is that the bleed screw location can be swapped with the plug, allowing you to locate the bleed screw at the high point of the caliper once mounted. This allows for easy brake-bleeding with the caliper installed on the bike, as the air needs to escape from the highest point.

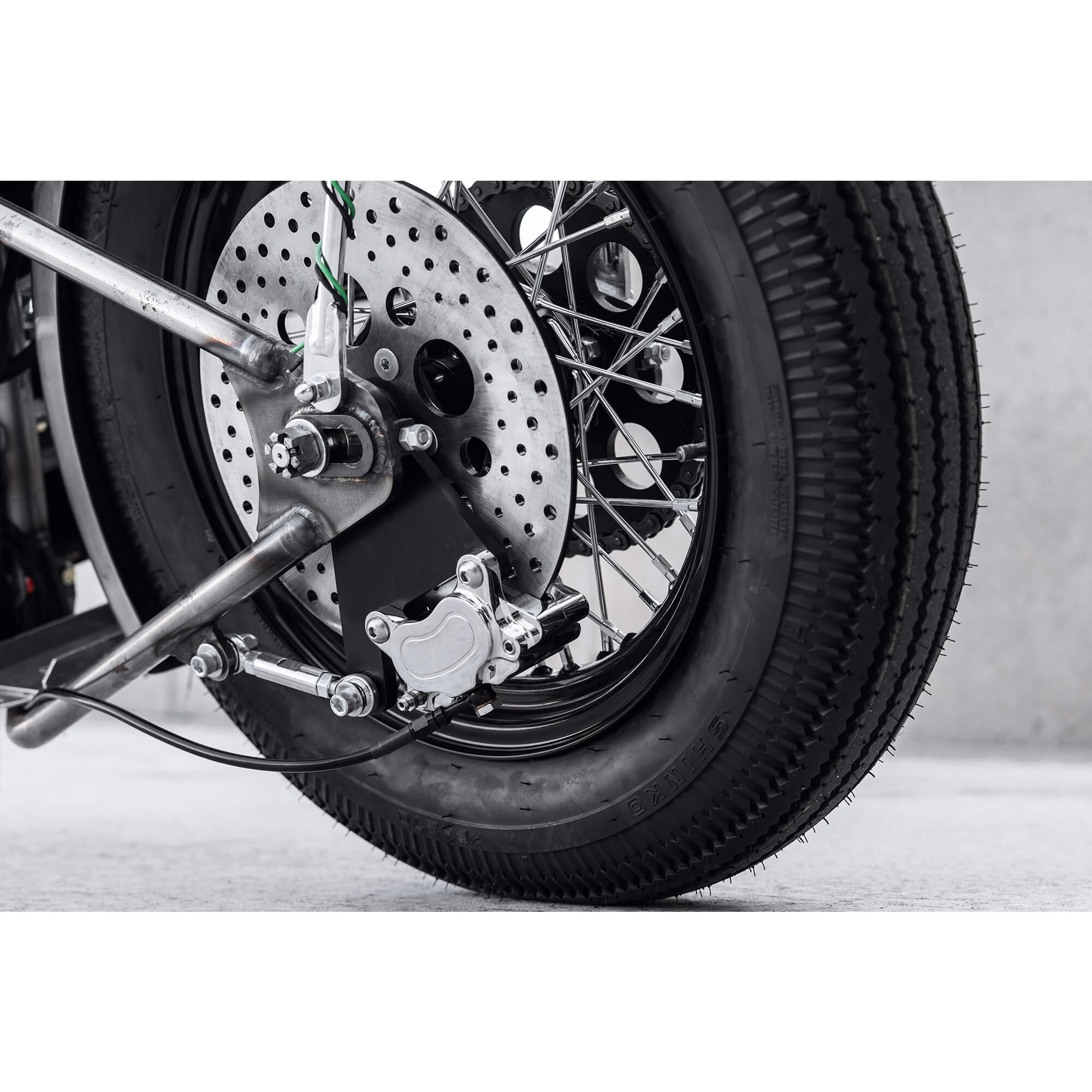

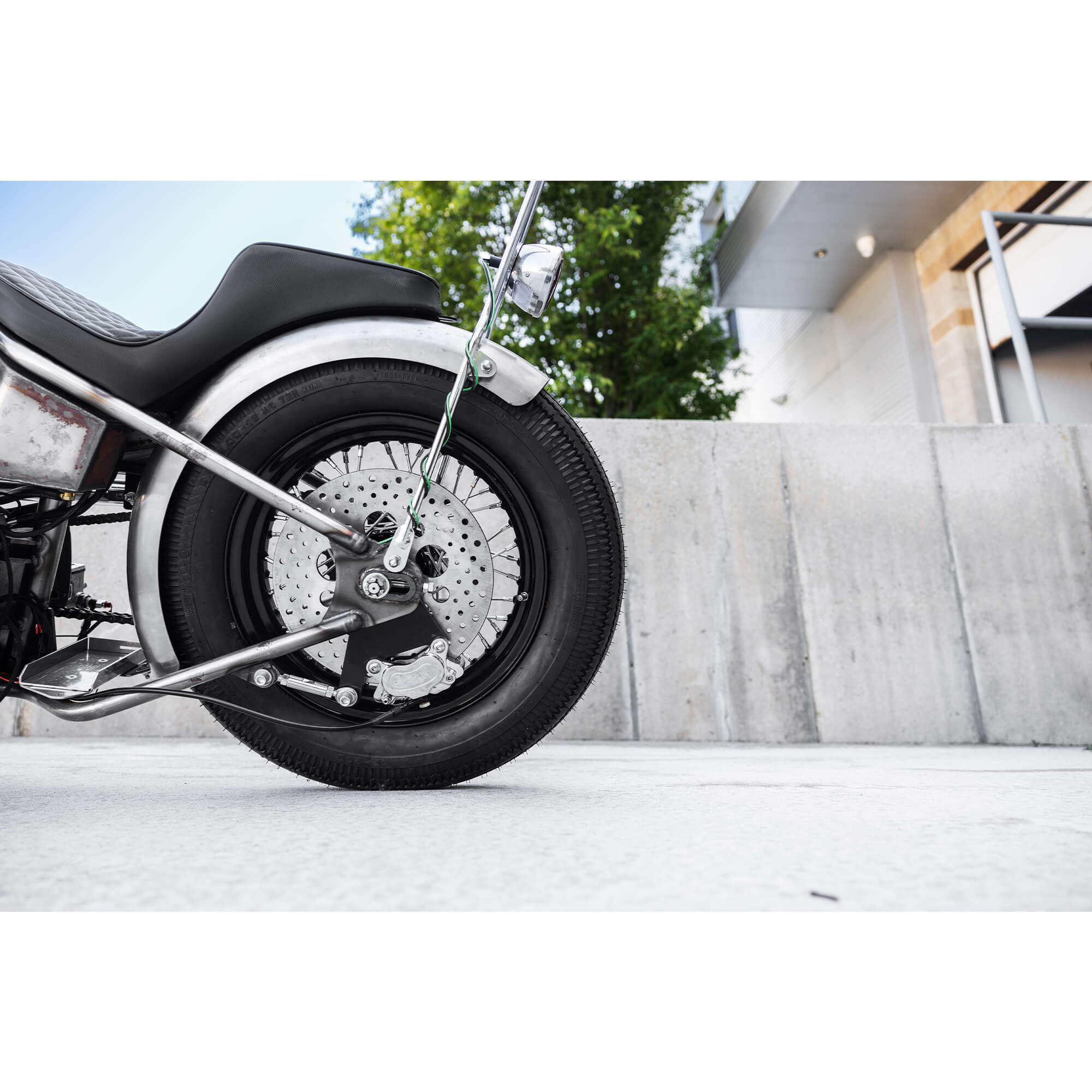

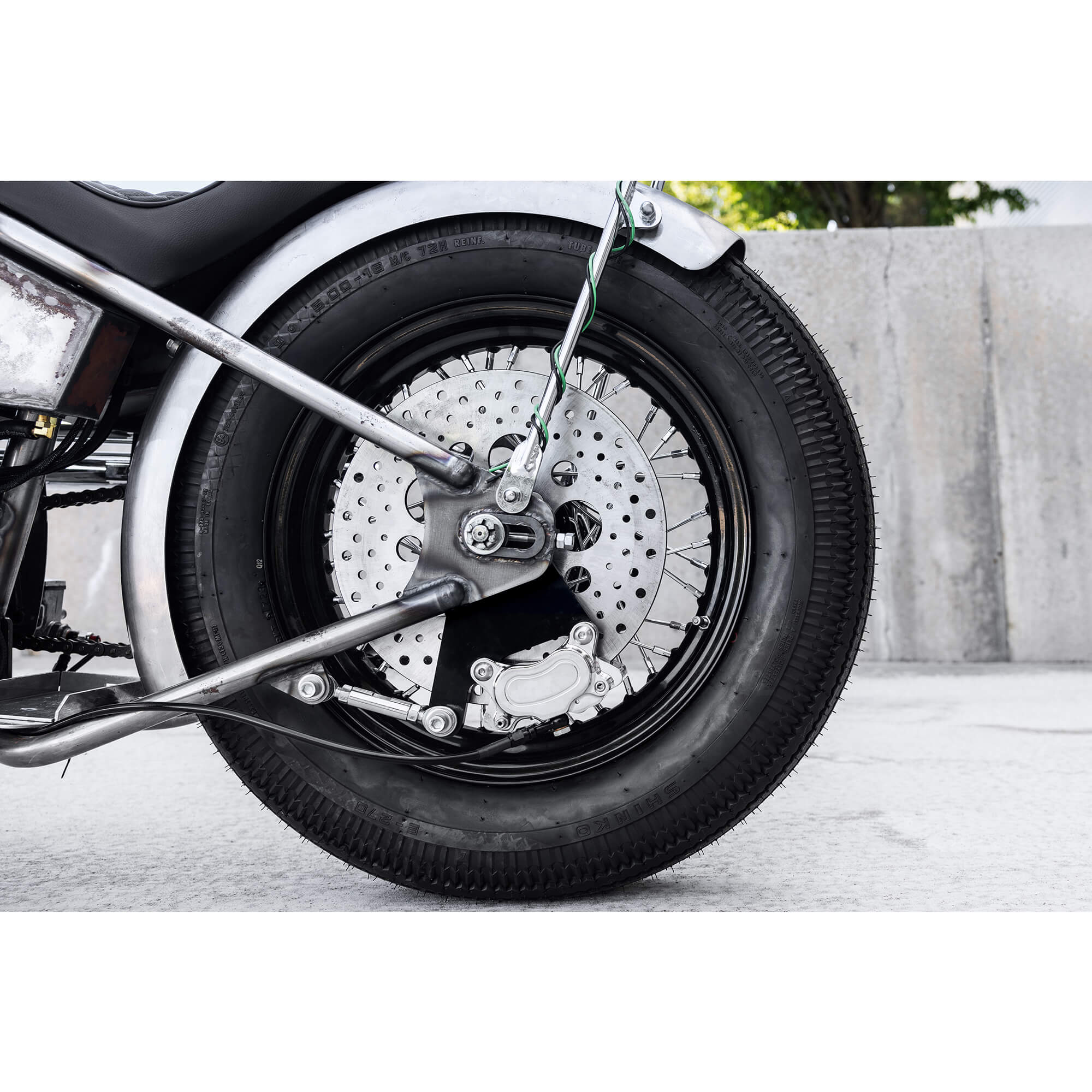

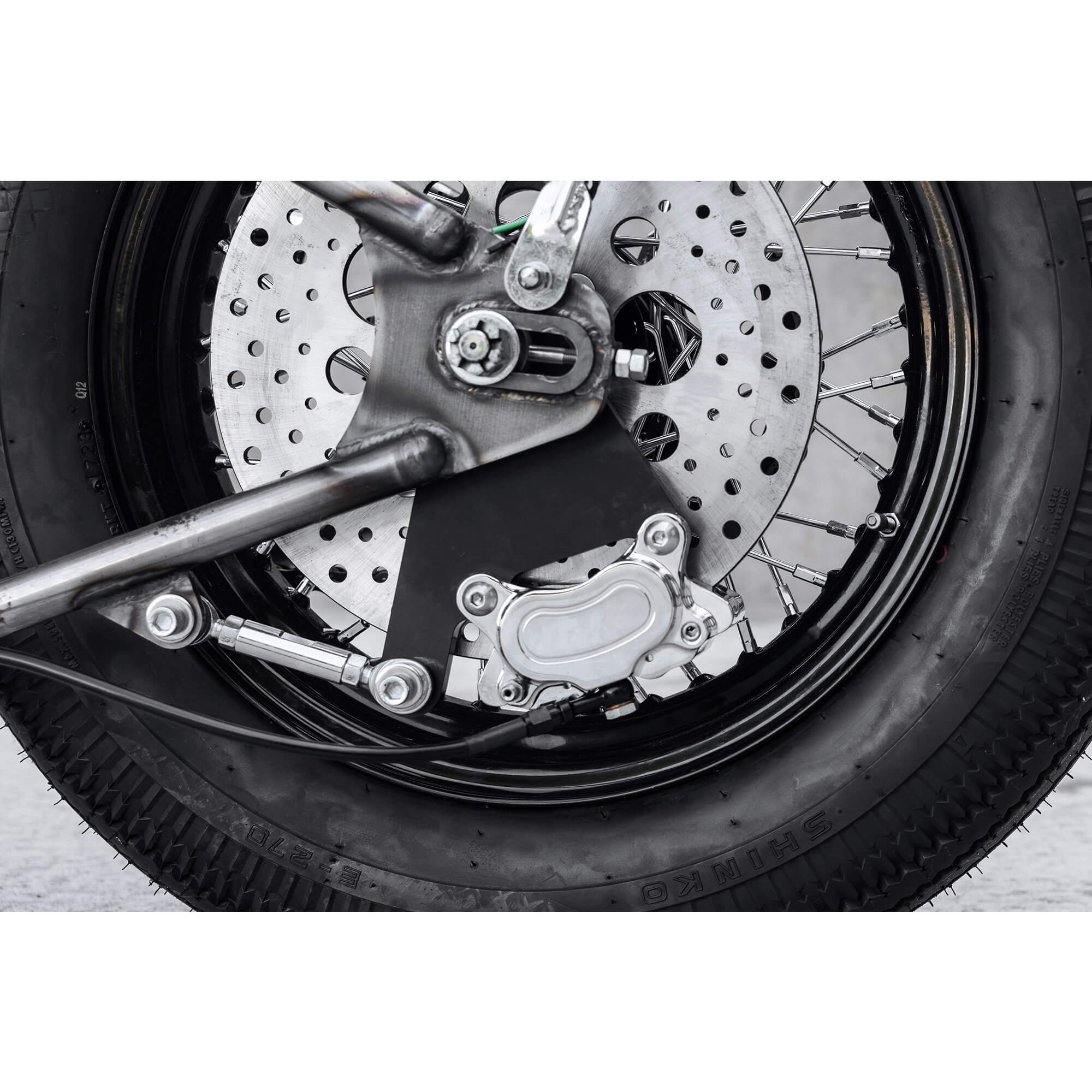

The mounting holes are 3-1/2" center-to-center, which is standard on most brake caliper brackets. These calipers are suitable for use on front and rear wheel applications. The supplied 3/8"-24 banjo bolt works perfectly with available brake line fittings and brake lines, allowing custom-length brake lines for a super clean and finished look. For tips on that check out our video and blog article, How To Make Custom Length Brake Lines For Your Motorcycle. When a caliper needs servicing, caliper rebuild kits and replacement brake pads are readily available.
NOTE: A 3/4" bore master cylinder is recommended for 4 piston calipers.
