Patent U.S. D1004411

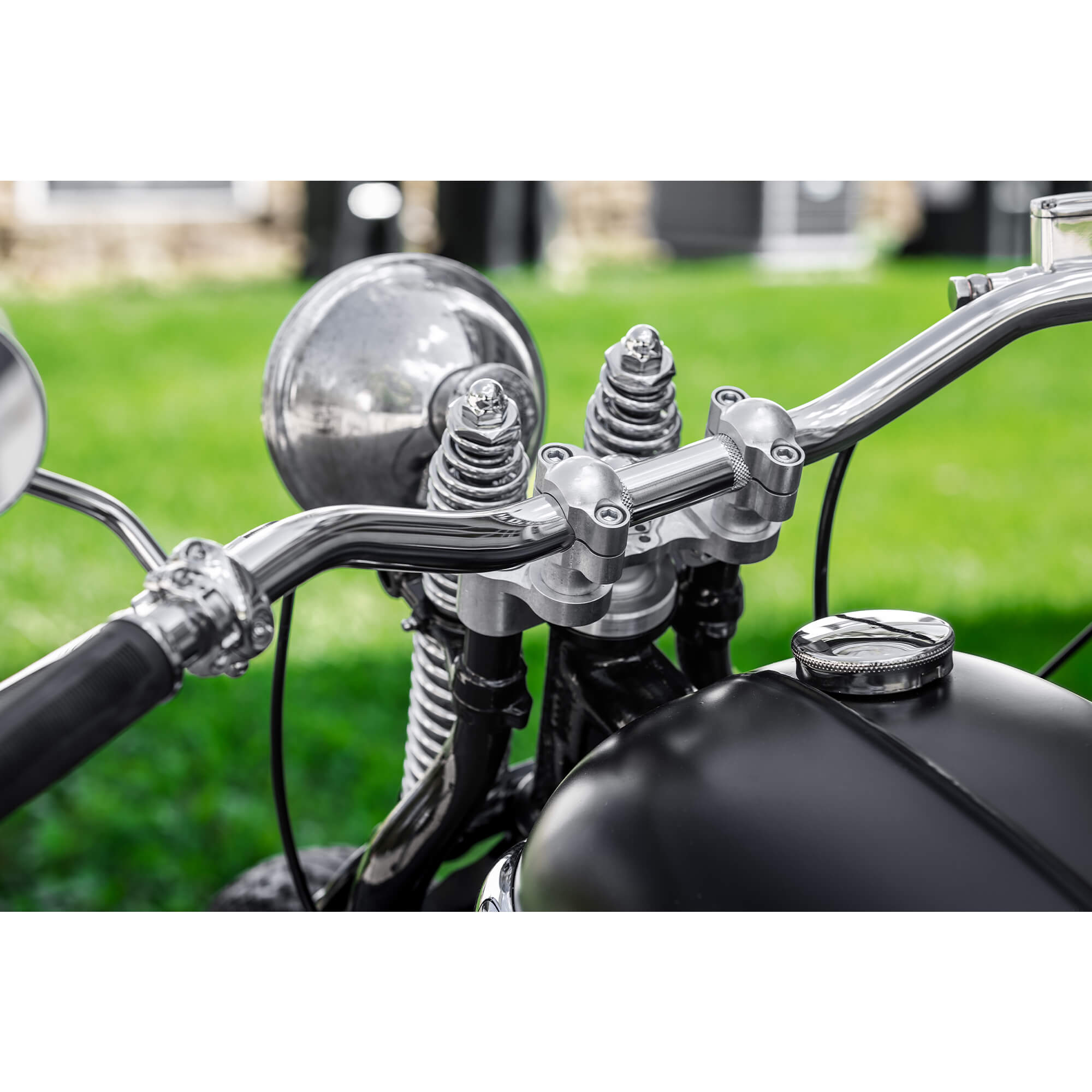

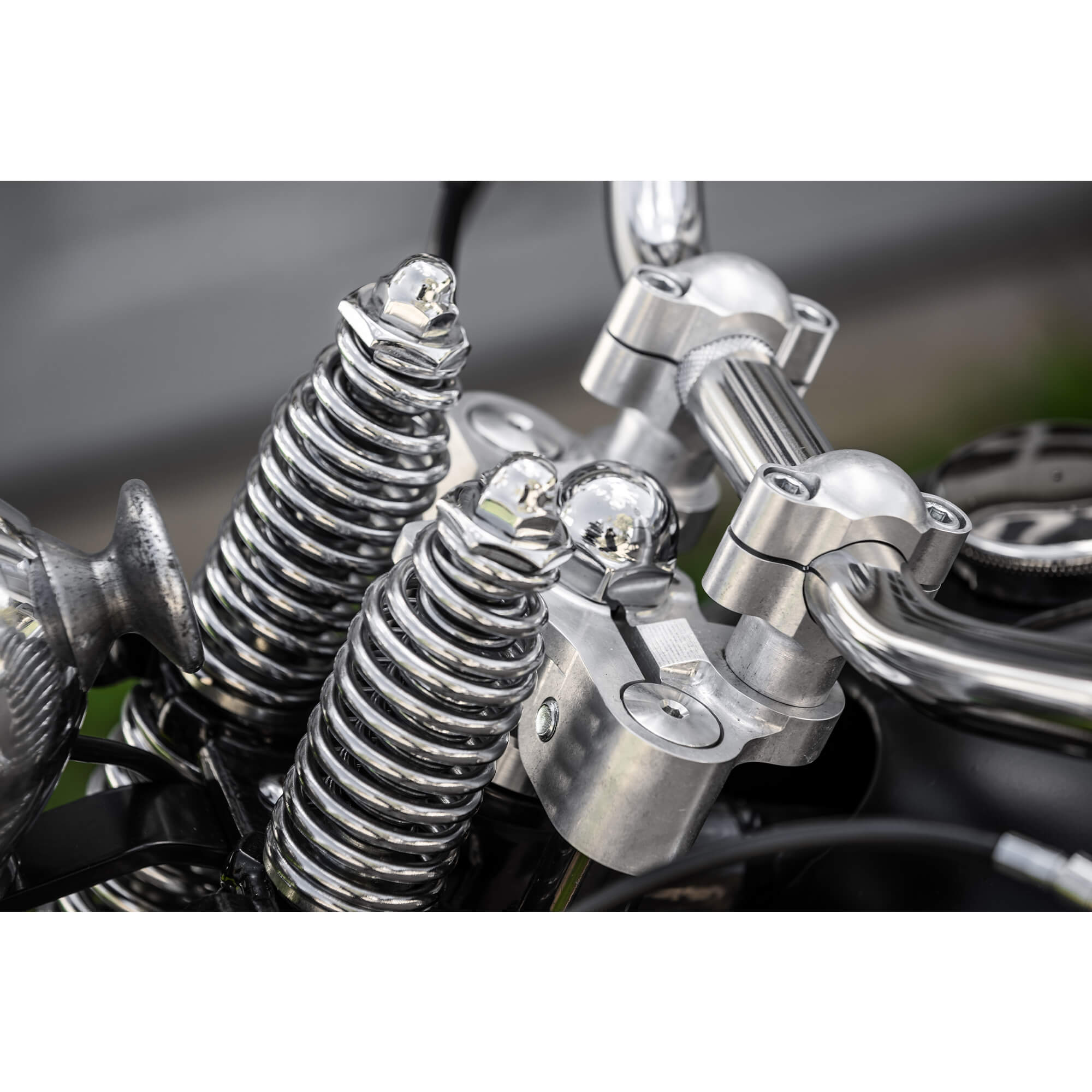

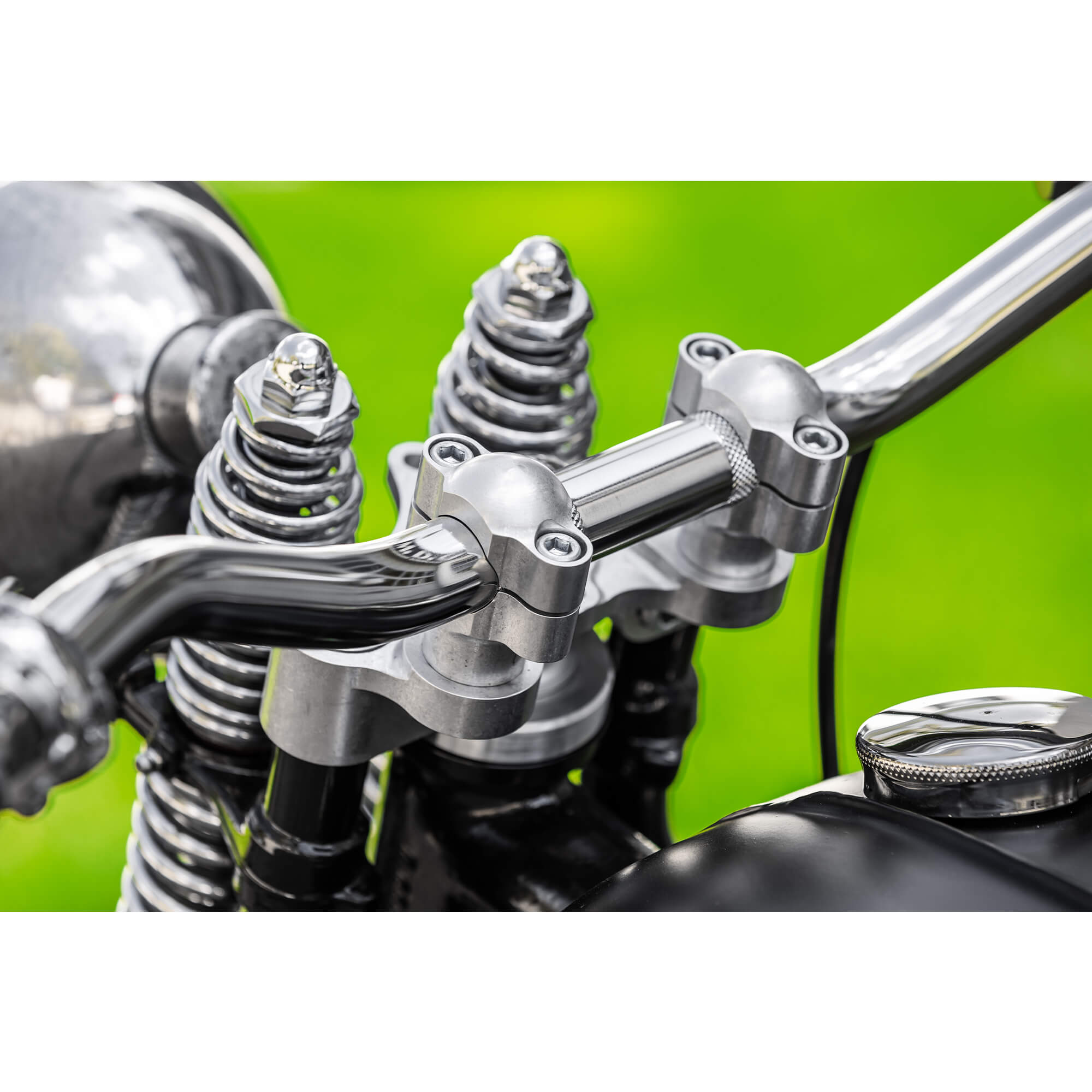

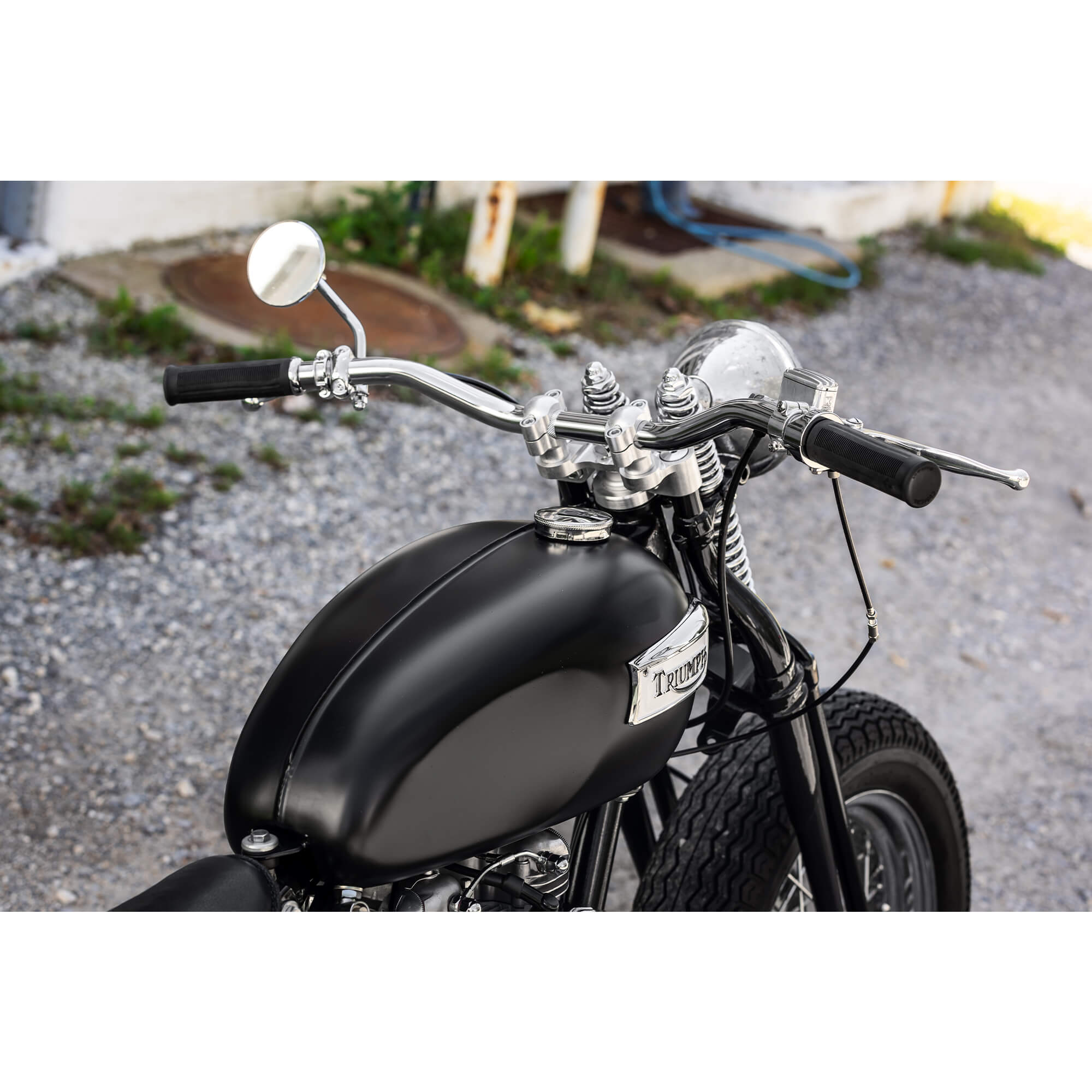

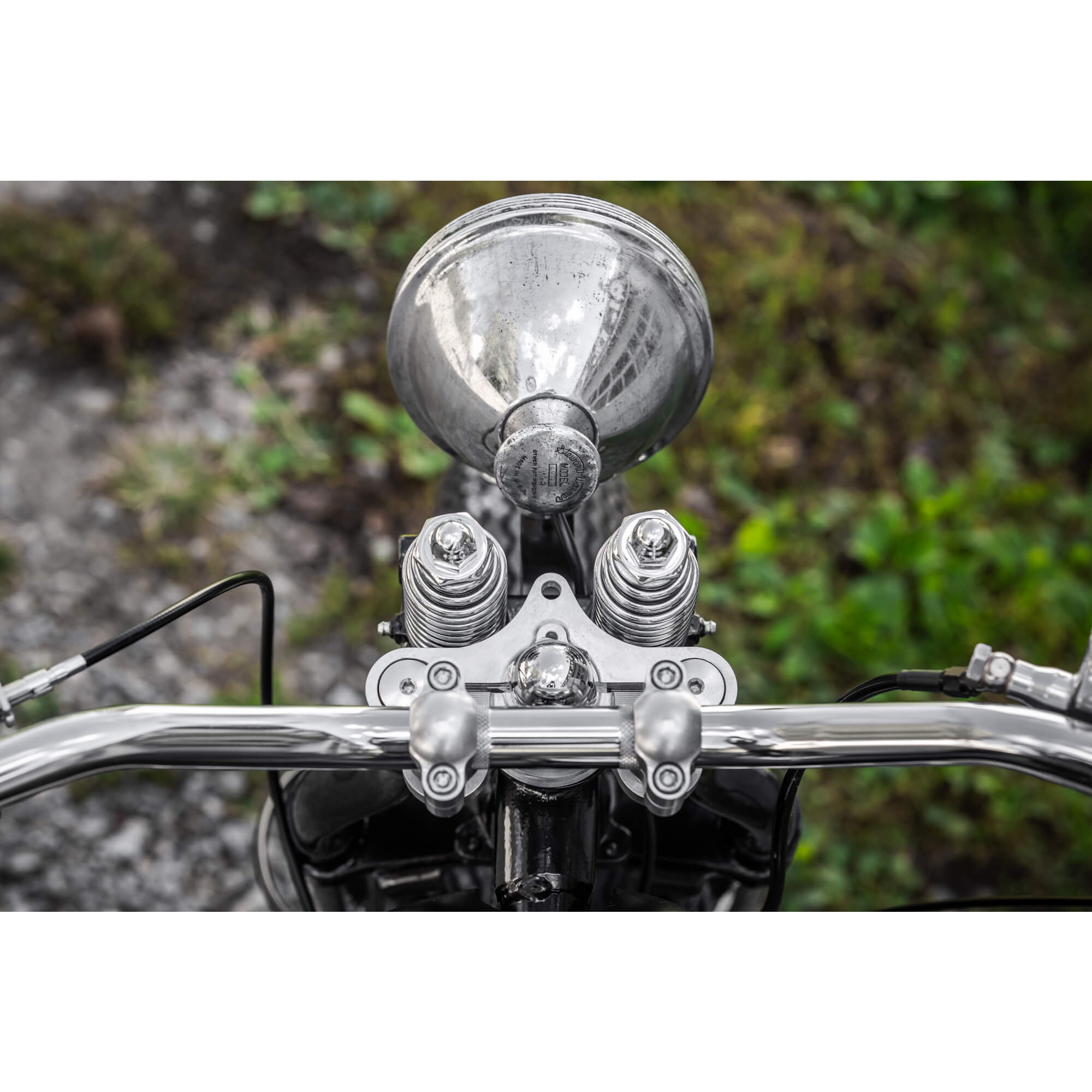

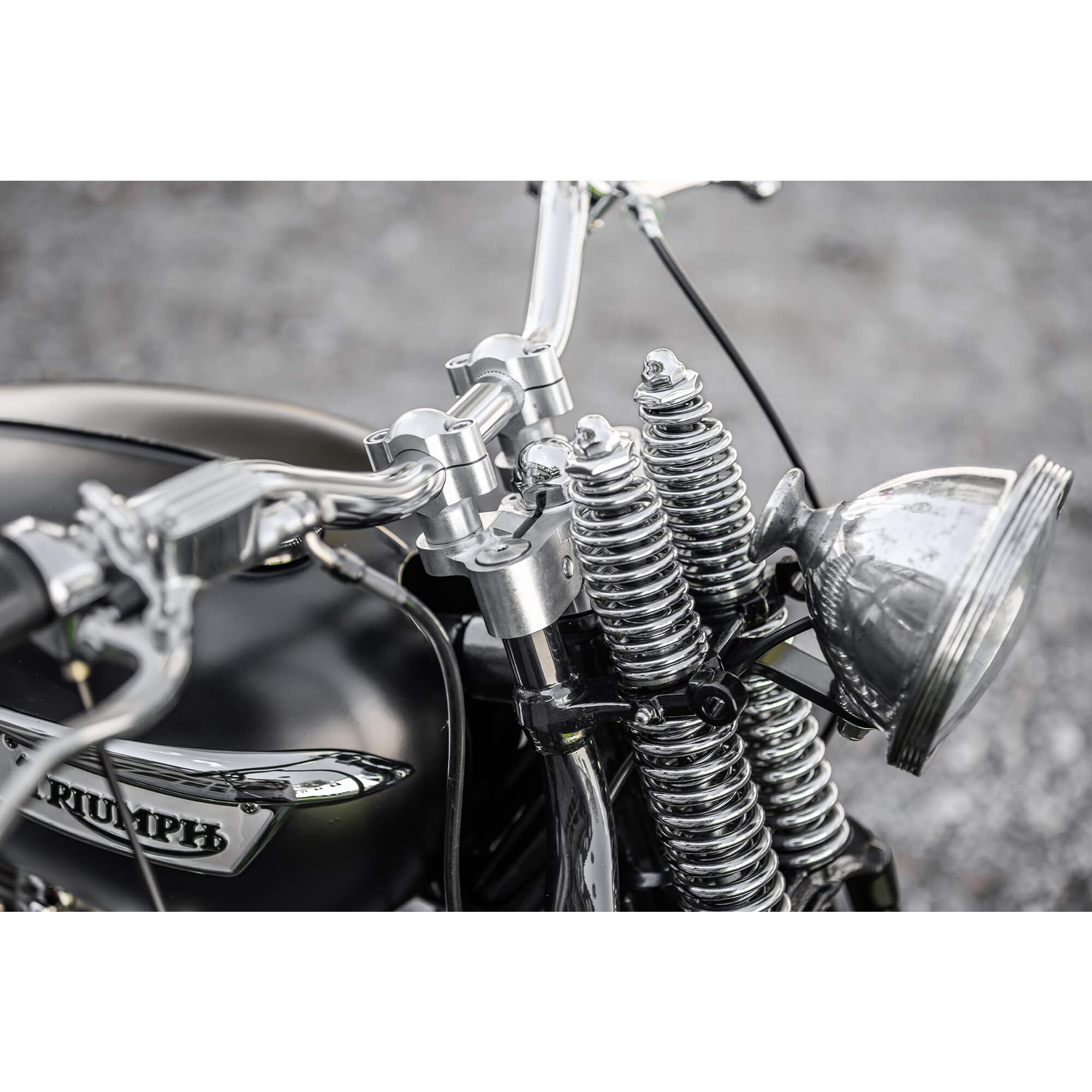

Tired of the limited handlebar options for your springer front end? This innovative and exclusive top clamp is the solution. It's engineered to let you run any standard handlebar risers set on the normal 3.5-inch Harley spacing, opening up a world of handlebar possibilities that were previously unavailable. Ditch the special, wide-spaced bars and mount what you truly want.
- CNC-machined from 6061-T6 Billet Aluminum in Ohio, USA.
- Adapts vintage-style springer forks (OEM H-D, Cannonball, Mid-USA, Paughco) to accept standard 3.5" spaced handlebar risers.
- The riser pad area is a secure 1-7/16" in diameter, providing a stable base.
- Includes two sets of riser bolts to cover both common thread pitches: 1/2"-13 and 1/2"-20.
NOTE: Not intended for modern springer forks (such as H-D Softail springer models).
NOTE: Due to the variances in different brands of aftermarket springers, it may be necessary to enlarge the mounting holes on the clamp for a perfect fit on the fork's rear legs
