If you're building motorcycles, fabricating parts, or just getting started in metalworking, a dial caliper is one of the most valuable tools you can own.
It isn't just for machinists—it's a tool you'll reach for constantly when measuring parts, laying out projects, checking fitment, and making sure everything goes together accurately.
Whether you're building a custom chopper or fabricating brackets in your garage, learning how to read a dial caliper is a skill that pays off on every project.
WATCH VIDEO: HOW TO MEASURE & READ DIAL CALIPERS
In this video, Tim explains the importance of accurate measurements in motorcycle building and walks you through all of the parts that make up the dial caliper.
He demonstrates how to read the tool correctly through multiple examples and shows how to use its different measuring functions to take precise measurements with confidence.
By the end of this video, you'll be a rock star at using dial calipers and will find yourself reaching for them every time when building a custom motorcycle.
12" set of Dial Calipers.
WHY DIAL CALIPERS MATTER
A dial caliper can measure far more accurately than a tape measure or standard ruler. It allows you to:
- Measure outside dimensions
- Measure inside diameters
- Check hole depths
- Measure the distance between two surfaces
- Lay out precise fabrication lines
- Calculate bolt spacing and offsets
Once you become comfortable using one, you'll find yourself reaching for it constantly—not just during motorcycle builds, but for nearly any fabrication project.
Dial Caliper parts.
UNDERSTANDING THE PARTS OF A DIAL CALIPER
Before taking measurements, it's helpful to understand what each part of a dial caliper does. Here's a brief overview of the major components and their functions.
EXTERNAL JAWS
The larger lower jaws measure the outside dimensions of parts such as tubing, shafts, bolts, spacers, and other external surfaces.
INTERNAL JAWS
The smaller upper jaws are designed to measure inside dimensions, including bearing bores, tubing, holes, and other internal diameters.
INDICATOR NEEDLE
The indicator needle points to the measurement on the dial and displays the thousandths portion of the reading.
DIAL
The dial displays measurements in thousandths of an inch (.001").
BEZEL
The bezel surrounds the dial and can be rotated to zero the indicator before taking measurements, ensuring accurate readings.
BEZEL CLAMP
The bezel clamp locks the bezel in place after it has been zeroed out or calibrated against a gauge block (Jo Block), preventing the dial from rotating during use.
SLIDE LOCK SCREW
After taking a measurement, the slide lock screw secures the movable jaw so the measurement can be transferred, scribed, or recorded without changing.
STEP GAUGE
The step-measuring faces on the back of the caliper jaws are used to measure the height or depth of steps, ledges, and shoulders.
REFERENCE EDGE
The reference edge (or index line) is the line used to read the main scale on the beam.
THUMB WHEEL
The thumb wheel provides smooth, controlled movement of the sliding jaw for more precise measurements.
DEPTH ROD
The depth rod extends from the end of the caliper and is used to measure the depth of holes, bore, slots, pockets, and recesses.
SCALE
The beam scale provides the main measurement. It displays the whole inches and tenths.(0.100")
BEAM
The beam is the main body of the caliper. It contains the measurement scale and houses the depth rod when it is retracted.
Dial Caliper's main scale is in 10ths, compared to a normal Ruler / Scale that is usually in 8ths and or 16ths.
READING THE MAIN SCALE
The beam of the caliper works similarly to a standard ruler.
The large numbers represent whole inches.
Between each inch, the scale is divided into tenths:
- 0.100"
- 0.200"
- 0.300"
- and so on.
The dial then measures the remaining thousandths needed to complete the measurement.
The first two numbers you will find with the reference edge pointing on the scale on the beam. The third and fourth numbers you will find on the dial indicator.
For example:
If the beam shows 2.6 inches and the dial reads 0.025, the total measurement is:
2.625 inches
Once you understand that the beam gives you inches and tenths while the dial fills in the thousandths, reading a dial caliper becomes much easier.
A pocket scale can be helpful on the fly for converting decimals into fractions.
CONVERTING FRACTIONS TO DECIMALS
One of the biggest hurdles for beginners is converting fractions into decimal measurements. Most calculators don't do fractions when needing to add dimensions, so keeping a pocket decimal conversion chart nearby makes life much easier.
Some common conversions include:
| Fraction | Decimal |
|---|---|
| 1/8 | 0.125 |
| 1/4 | 0.250 |
| 3/8 | 0.375 |
| 1/2 | 0.500 |
| 5/8 | 0.625 |
| 3/4 | 0.750 |
| 7/8 | 0.875 |
Being comfortable with these numbers makes measuring and calculating much faster, especially when using a calculator.
With the external jaws closed loosen the bezel clamp and turn the bezel til the dial indicator is at 0 and lock the bezel clamp.
PREPARATION FOR USING DIAL CALIPERS
Before measuring anything:
- Wipe the jaws clean.
- Close them gently.
- Verify the dial reads zero.
- Adjust the bezel if necessary.
- Make sure the Bezel Clamp is locked down at 0.
Using a Jo Block gauge can help you properly calibrate your dial indicator as well. This one you can see is 0.950" and you can unlock your bezel clamp and make sure the reference edge is in between 0.9 and the 1in on the scale and the dial indicator is set to 0.50"
Cleanliness is so important with this tool. Even a small metal chip of dirt between the jaws can throw off an accurate measurement. So be sure to clean your calipers before calibrating your dial indicator.
Using the external jaws to measure the OD on this part, it came out to 1.922"
HOW TO MEASURE OD AKA OUTSIDE DIMENSIONS
Outside measurements are probably the most common use for a dial caliper.
Simply place the lower jaws around the part and close them until they lightly contact both sides.
Examples include measuring:
- Round stock
- Tubing
- Bolts
- Spacers
- Plate thickness
Avoid squeezing too tightly. The jaws should just contact the material without forcing them closed.
Using the internal jaws of the calipers the ID of this part measures 1.1875"
HOW TO MEASURE ID AKA INSIDE DIAMETERS
Use the upper jaws for holes and bores.
Insert the jaws into the opening and gently expand them until they touch both sides.
A slight rocking or wiggling motion helps ensure you're measuring the true diameter rather than catching the caliper at an angle.
Using the Depth rod to measure the bore of the part. Make sure the flat edge of the beam is square with the part and drop the depth rod down till it hits the bottom. This is parts depth is reading 1.484"
MEASURING DEPTH WITH A DIAL CALIPER
The depth rod on the end of the caliper makes checking pocket or bore depth easy.
Place the base of the caliper flat on the surface while extending the depth rod until it contacts the bottom.
Keeping the caliper square to the surface improves accuracy. Because there are some moving parts you may want to measure a few times to check accuracy.

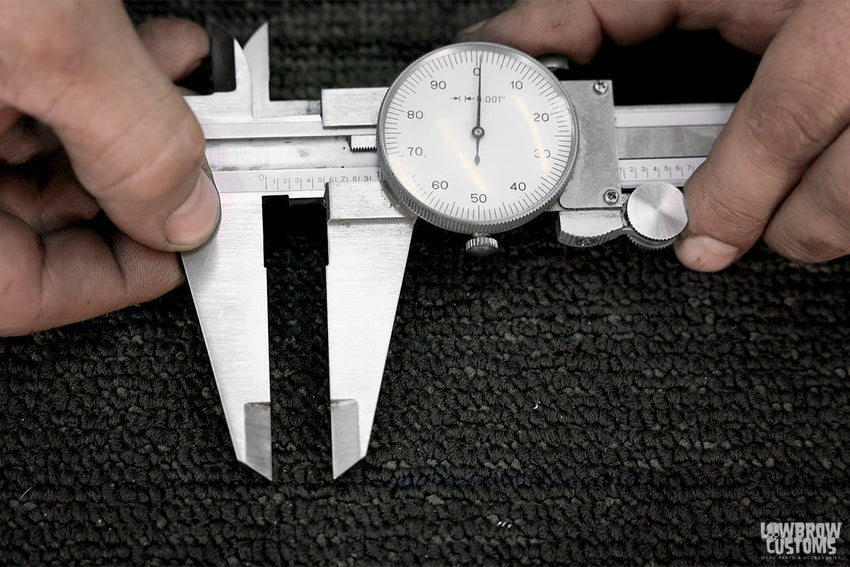

Using the slide lock screw, lock down the calipers at 0.500"
USING DIAL CALIPERS FOR LAYOUT WORK
One of the most overlooked uses for dial calipers is layout.
For example, if you want to drill mounting holes exactly 1/2 inch from each edge of a steel plate:
- Set the caliper to 0.500".
- Lock the slide.
- Use one jaw as a guide and place at the edge of the part.
- Lightly scribe your layout lines.
You can see one side of the external jaw is riding the edge of the part while the other side is scribing a line perfectly at 0.500".
Scribe on both sides of the part and it will make an X and a perfect center for you to use a center punch and be able to drill.
After marking both directions, you'll have perfectly located hole centers ready for center punching and drilling.
Many fabricators keep an inexpensive set of calipers specifically for layout work to avoid scratching their precision measuring tools.
FINDING CENTER-TO-CENTER HOLE SPACING WITH DIAL CALIPERS
This technique is especially useful when making custom motorcycle parts.
Suppose you need to duplicate the bolt pattern from an existing triple tree.
Here's the process:
- Measure one hole diameter.
- Measure the minimum distance between the two holes.
- Add one full hole diameter.
For example: Grab a set of triple trees for instance. First you will want to measure one of the holes. This hole is measuring 0.530"
Next you will measure the inside distance of the two holes. then you need to add half a hole times two which is one hole size to figure out the center to center. The distance is measuring 2.970"
- Hole diameter = 0.530"
- Distance between holes = 2.970"
Center-to-center spacing:
2.970 + 0.530 = 3.500 inches
This simple method allows you to accurately reproduce bolt patterns for brackets, handlebars, mounts, and countless fabrication projects.
Measure a bunch of stuff and get good at reading the scale and dial indicator. This part is measuring 1.375"
PRACTICE MAKES PERFECT
Like any shop tool, reading a dial caliper gets easier with practice.
Start by measuring objects around your shop:
- Bolts
- Washers
- Steel plate
- Tubing
- Bearings
- Motorcycle components
Then compare what you measure with known dimensions.
After just a few practice sessions, reading thousandths of an inch becomes second nature.
You can see the dial caliper is showing the exact number on the Lowbrow Customs Notepad. 3.875" Again the first two numbers are shown on the scale and the third and fourth number are shown on the dial indicator.
FINAL THOUGHTS
A dial caliper is one of those tools that quickly becomes indispensable. Beyond simply measuring parts, it helps improve accuracy, speeds up fabrication, and makes custom motorcycle building far more precise.
Whether you're laying out brackets, checking spacers, measuring bearings, or duplicating bolt patterns, learning to use a dial caliper confidently is a foundational skill every builder should have.
Invest in a quality set, practice reading it often, and you'll wonder how you ever built anything without one.
