Is it your first time changing out your motorcycle handlebar grips? Wondering why motorcycle grips have a different size hole for each side, worried that you got the wrong parts?
Well, fear not my friends, they are supposed to be that way!
The larger hole is for the right-hand side of your handlebars. It is larger as it slips over the throttle tube. The throttle tube rotates over the handlebar, and is larger diameter than the handlebar itself.
The smaller hole is for the left-hand side of your handlebars, and slips over the bare handlebar.
Neither of these two holes will measure exactly 1", 7/8", etc. If they did, they would simply slide right off. The grips need to be a snug fit so they stay where they belong; on your handlebars!

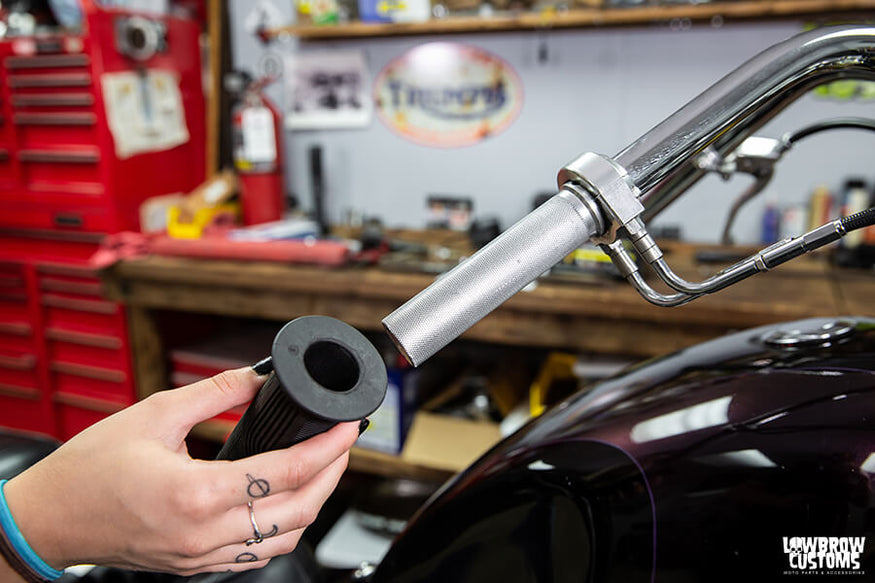

The larger hole goes on the throttle tube and the smaller hole goes on the handlebar on the left.
There are many different ways to install your grips, though some common ones would be to spray some hairspray, WD-40 or spray paint (the color doesn't matter!) inside your grip before sliding it on. While wet, it helps slide the grip on, but once dry it helps keep your rubber grips from sliding off.
Start from the very inside of the grip, spraying thoroughly to the outside edge.
The grip will slide on with ease and then as the WD-40 dries, it will become sticky and keep your grips on for miles and miles.
Another trick is to use some adhesive-backed grip tape, as found on skateboards, and applying thin strips around the end of your handlebars. It is hard to slip your grips on with the grip tape in place, but it will keep then from working their way loose.
Lastly, a mechanical way you can secure your rubber grips is by using a piece of safety wire around the outside of the end of your grip. Safety wire pliers twist the wire, tightening it tourniquet-style, compressing your grip against the handlebar. This is common practice on motocross bikes and race bikes of all sorts.
Regardless of installing your grips dry, with hair spray, or with grip tape on your bar end, using an air blow-off nozzle on your compressor's air line and spraying some compressed air under the edge of your grip as you install helps it slide in place very easily.
This is also a pro-tip for grip removal! Compressed air sprayed under the edge helps get old grips off, though slicing through them with a razor blade and peeling them off works quite fast and easy as well.
Remember grips come in two sizes, the larger one goes over the throttle tube and the smaller one goes over the left handlebar!

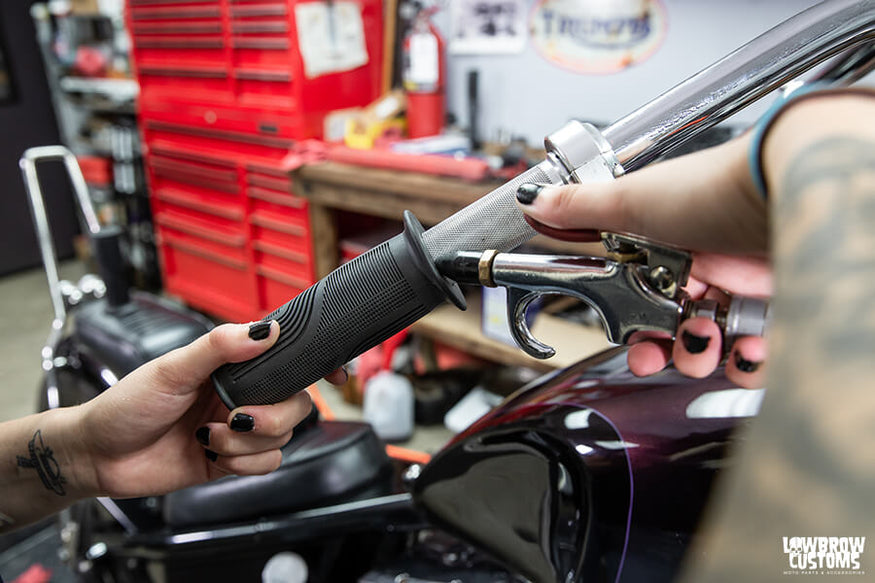

Using an air hose nozzle attached to your favorite air compressor will help slide on and off grips with ease!
Air nozzles make putting on grips easy peasy.
Most motorcycle grips do not include a throttle tube. The throttle tube slides onto your handlebar and is what you twist, typically pulling or pushing a cable. Late model Harley-Davidsons operate using a small sensor switch that turns when you twist the throttle, known as 'throttle by wire'.
Throttle tubes can be made out of aluminum, such as the Biltwell Throttle Tube, but there are also inexpensive but equally functional options available, such as the Cycle Standard Throttle Tube, which is made of a durable plastic. Aluminum throttle tubes will likely never give you any issues, while a plastic throttle tube could crack where the cable engages though this is by no means a common occurrence.
Some motorcycles, such as Harley-Davidsons, have the stock grip and throttle tube as one piece. In this case, you may want to purchase a throttle tube if you are interested in running custom Harley-Davidson grips. On many other bikes you can simply remove the stock rubber grip and install the new grips onto your existing stock throttle tube.
Check out the Lowbrow Customs YouTube channel to check out all of our videos. We spend a lot of time and effort creating motorcycle how-to videos, product reviews and event coverage for your enjoyment, please let us know what you think. Click here to subscribe to the Lowbrow Customs YouTube channel and stay in the know!

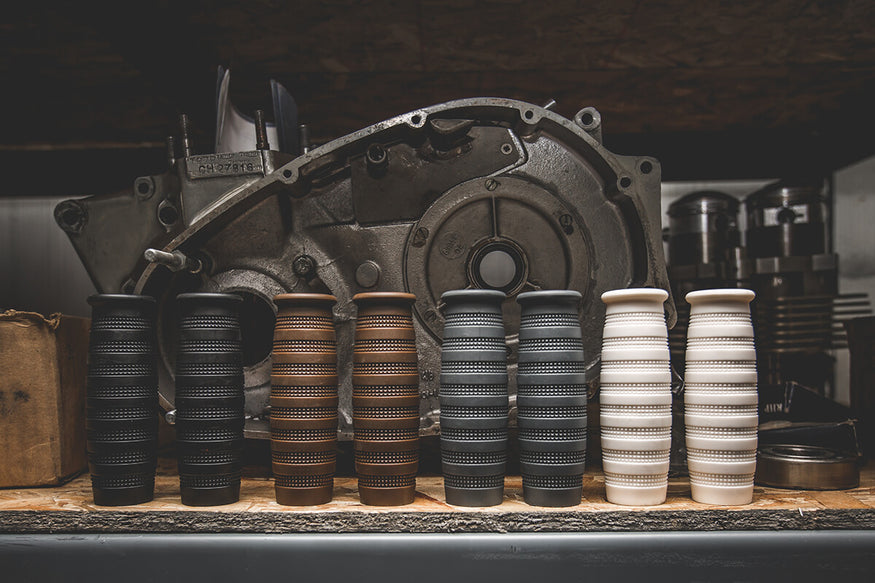

- Lowbrow Customs Knurled Grips
